BD 81
1 Bed
1 Bath
480 Sq. Ft.
36' x 13' 4"

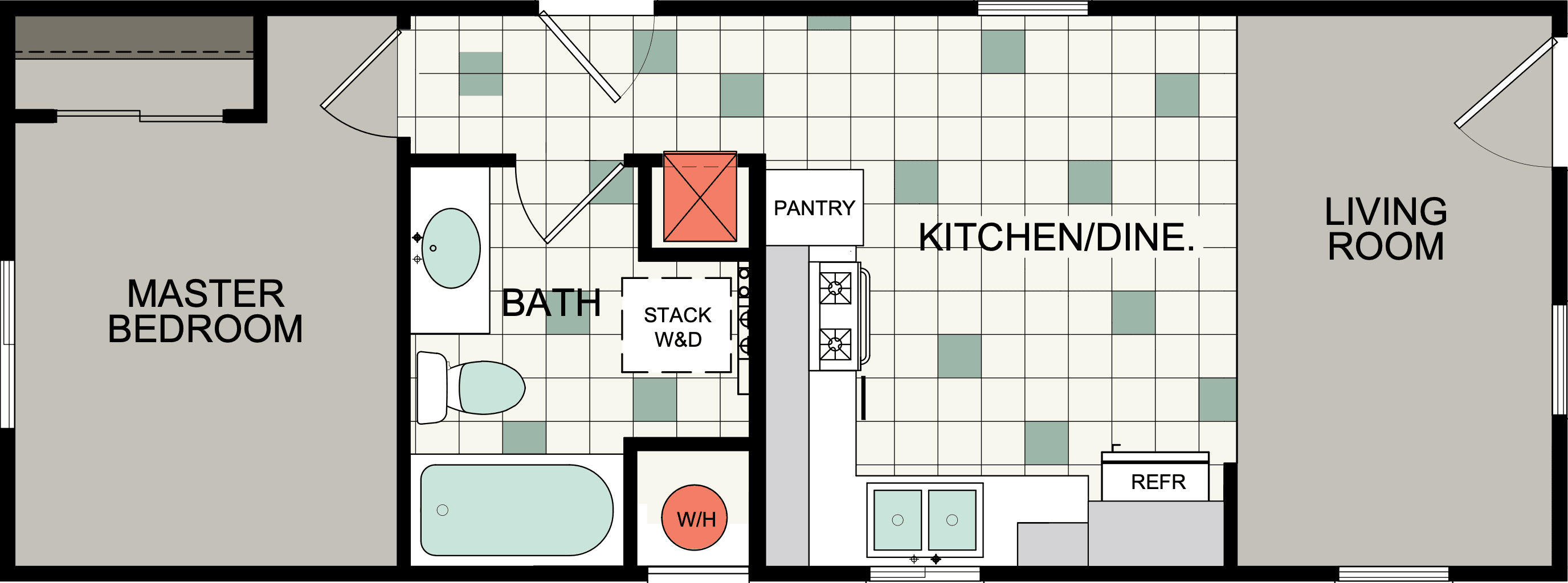

Floor Plan

    Bd 81 floor plan cropped home features

    Property map

    Enter your address to check if this home fits on your property


    Exterior & Construction

    • California CARB II compliant home
    • Includes Silvercrest’s “Silvershield” Seven-Year Warranty (Deductibles apply, claims processed by Cornerstone United Insurance Company)
    • 20 lb. roof load
    • Insulation - Energy Star Certified
    • Floor R-22
    • Walls R-13
    • Ceilings up to R-33
    • All structural lumber used is kiln-dried for higher quality
    • 2” x 6” transverse floor joists – 16” on center
    • 2” x 4” exterior wall studding – 16” on center
    • White vinyl framed, dual glazed windows with low-e coating for energy savings – windows are Energy Star® rated & approved
    • PEX water lines
    • Water shut-off valves at all sinks & toilets
    • 5/8” fire rated drywall ceilings
    • ½” drywall on all interior walls
    • ¾” OSB floor decking
    • 96” sidewall height – per plan
    • 100 amp electrical service
    • 30-gallon gas water heater
    • Gas down-flow furnace with programmable thermostat
    • Steel outriggers on all exterior walls for support
    • Semi-gloss exterior paint with three color design featuring high-quality PPG paint
    • Class “A” fire-rated architectural shingles with Manufacturers 30-Year Limited Warranty
    • High wind nailing pattern on all shingles (6 nails per shingles vs. 4 staples from other manufacturers)
    • (2) exterior GFI protected patio outlets (locations vary per plan)
    • 16” front overhang
    • Sidewall eaves per plan (construction modifications can affect standard eave design)
    • Craftsman-style shutters (per plan)
    • Six-panel 36” fiberglass insulated entry door with deadbolt security lock
    • Six-panel 32” fiberglass insulated rear entry door with deadbolt security lock
    • All exterior doors with deadbolts feature a metal plate on door jam for added security
    • Name brand fiber-cement exterior siding materials with Manufacturers 25-Year Limited Warranty
    • 8” hardboard fascia & 4” hardboard corner & window trim

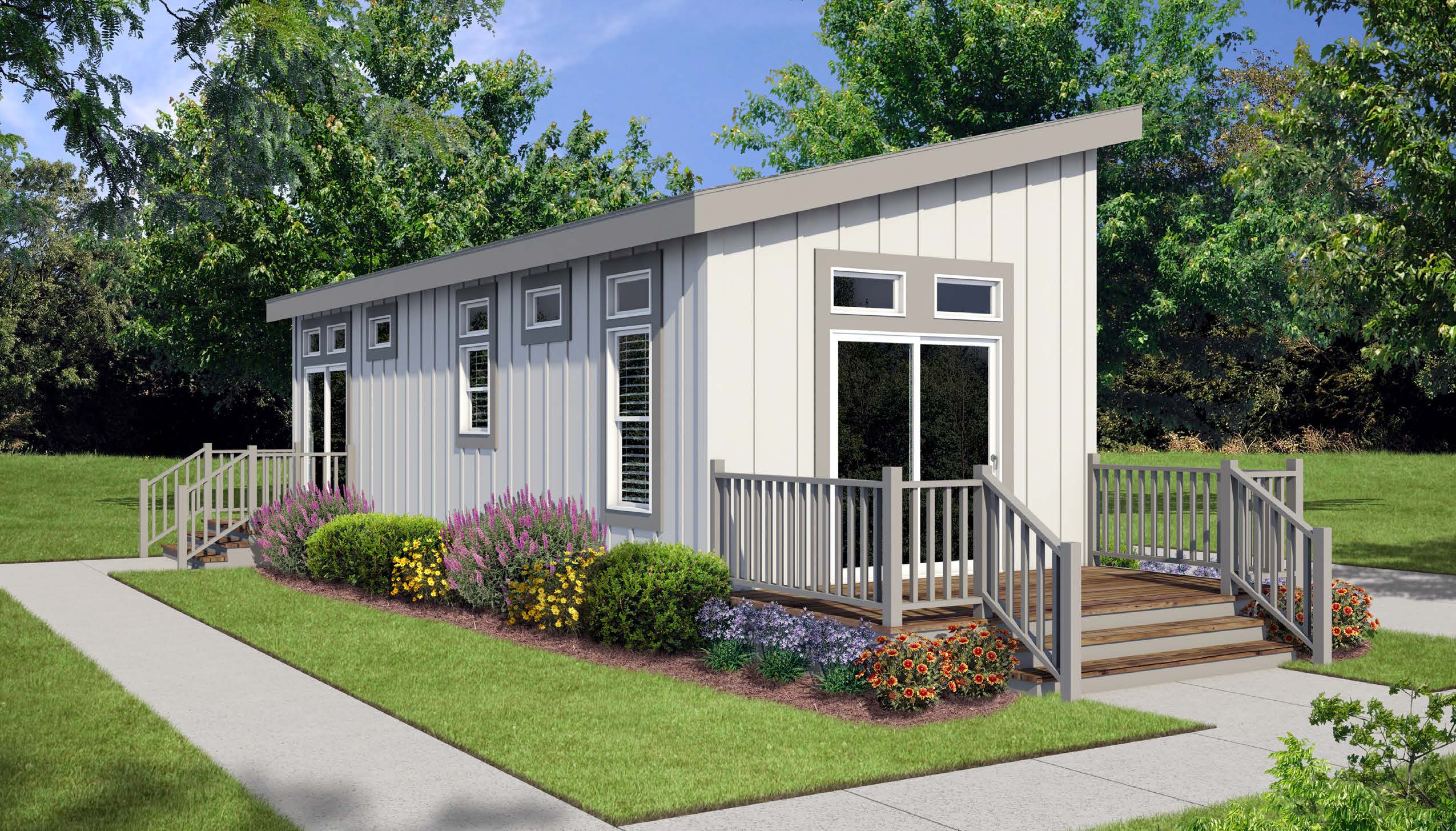

    Bd 81 hero, elevation, and exterior home features

    Kitchen

    • Whirlpool® white finished kitchen appliances
    • 30” gas freestanding range
    • 18 cubic foot double door refrigerator
    • Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
    • Adjustable shelves in overhead cabinets finished with white lined cabinet interiors
    • 8” deep stainless steel self-rimming sink
    • Crown molding on all overhead cabinets
    • Toe-kick heat register in base cabinets (per plan)
    • Corian® finish countertops with 4” backsplash, 2” front drop edge

    Bathroom

    • Designer-selected light fixture above sinks
    • 60” one-piece fiberglass tub / shower
    • Corian® counters with 4” backsplash
    • Beveled-edge mirrored medicine cabinet
    • China self-rimming sinks
    • Satin nickel lighting fixtures
    • Towel bar & paper holder – satin nickel finish
    • Elongated low-flow water-saving toilets
    • Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
    • Moen® tub/shower faucet featuring pressure balance valves to help prevent temperature variations, reducing the chance of scalding
    • Ceiling vented exhaust fan
    • Shaw Challenger vinyl floor covering

    Interior

    • 8’ Flat interior ceilings throughout
    • ½” drywall on walls with square corners
    • Orange peel-style textured finish on walls & ceilings
    • White walls standard - choice of six additional optional interior wall colors
    • Two-panel passage & wardrobe doors throughout
    • Dramatic sculptured passage door moldings
    • 3 1/2” sculptured floor moldings throughout (optional 5 ¼” also available!)
    • (3) mortised hinges on passage doors
    • Lever-style passage door locksets – satin nickel finish
    • Hand-finished wood cabinets throughout with solid end panel construction
    • Soft-close hidden hinges on cabinet doors
    • Side-mounted metal drawer guides
    • Rocker-style light switches with matching style wall outlets
    • All copper wiring throughout
    • Metal water shutoff valves at all fixtures
    • 2” white faux wood blinds with matching wood valance
    • Plumb/wire for washer & gas dryer
    • USB receptacle in kitchen area for easy recharging of electronic devices
    • White wood window casings throughout (except bath areas)
    • Group 1 Mohawk® carpet in living areas
    • ½” rebond carpet pad
    • Shaw Challenger vinyl flooring in kitchen, baths, utility, nook & dining areas (per plan)
    • Vinyl entry floor
    • Designer-selected lighting in designated areas
    • Switched wall outlet for lamp lighting in living room and all bedrooms (wall outlet designated by being installed upside down for easy identification)
    • LED can lights in kitchen (2), hall, utility & walk-in wardrobes


    Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.

    BD 81

    $82K - $100K

    1 bedroom (sleeps 1-2)

    1 full bathroom

    480 sq. ft.

    36' x 13' 4"

    ADU eligible

    Design home
    Bradford standard features

    Construction

    • California CARB II compliant home
    • Includes Silvercrest’s “Silvershield” Seven-Year Warranty (Deductibles apply, claims processed by Cornerstone United Insurance Company)
    • 20 lb. roof load
    • Insulation - Energy Star Certified
    • Floor R-22
    • Walls R-13
    • Ceilings up to R-33
    • All structural lumber used is kiln-dried for higher quality
    • 2” x 6” transverse floor joists – 16” on center
    • 2” x 4” exterior wall studding – 16” on center
    • White vinyl framed, dual glazed windows with low-e coating for energy savings – windows are Energy Star® rated & approved
    • PEX water lines
    • Water shut-off valves at all sinks & toilets
    • 5/8” fire rated drywall ceilings
    • ½” drywall on all interior walls
    • ¾” OSB floor decking
    • 96” sidewall height – per plan
    • 100 amp electrical service
    • 30-gallon gas water heater
    • Gas down-flow furnace with programmable thermostat
    • Steel outriggers on all exterior walls for support

    Exterior

    • Semi-gloss exterior paint with three color design featuring high-quality PPG paint
    • Class “A” fire-rated architectural shingles with Manufacturers 30-Year Limited Warranty
    • High wind nailing pattern on all shingles (6 nails per shingles vs. 4 staples from other manufacturers)
    • (2) exterior GFI protected patio outlets (locations vary per plan)
    • 16” front overhang
    • Sidewall eaves per plan (construction modifications can affect standard eave design)
    • Craftsman-style shutters (per plan)
    • Six-panel 36” fiberglass insulated entry door with deadbolt security lock
    • Six-panel 32” fiberglass insulated rear entry door with deadbolt security lock
    • All exterior doors with deadbolts feature a metal plate on door jam for added security
    • Name brand fiber-cement exterior siding materials with Manufacturers 25-Year Limited Warranty
    • 8” hardboard fascia & 4” hardboard corner & window trim

    Interior

    • 8’ Flat interior ceilings throughout
    • ½” drywall on walls with square corners
    • Orange peel-style textured finish on walls & ceilings
    • White walls standard - choice of six additional optional interior wall colors
    • Two-panel passage & wardrobe doors throughout
    • Dramatic sculptured passage door moldings
    • 3 1/2” sculptured floor moldings throughout (optional 5 ¼” also available!)
    • (3) mortised hinges on passage doors
    • Lever-style passage door locksets – satin nickel finish
    • Hand-finished wood cabinets throughout with solid end panel construction
    • Soft-close hidden hinges on cabinet doors
    • Side-mounted metal drawer guides
    • Rocker-style light switches with matching style wall outlets
    • All copper wiring throughout
    • Metal water shutoff valves at all fixtures
    • 2” white faux wood blinds with matching wood valance
    • Plumb/wire for washer & gas dryer
    • USB receptacle in kitchen area for easy recharging of electronic devices
    • White wood window casings throughout (except bath areas)
    • Group 1 Mohawk® carpet in living areas
    • ½” rebond carpet pad
    • Shaw Challenger vinyl flooring in kitchen, baths, utility, nook & dining areas (per plan)
    • Vinyl entry floor
    • Designer-selected lighting in designated areas
    • Switched wall outlet for lamp lighting in living room and all bedrooms (wall outlet designated by being installed upside down for easy identification)
    • LED can lights in kitchen (2), hall, utility & walk-in wardrobes

    Kitchen

    • Whirlpool® white finished kitchen appliances
    • 30” gas freestanding range
    • 18 cubic foot double door refrigerator
    • Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
    • Adjustable shelves in overhead cabinets finished with white lined cabinet interiors
    • 8” deep stainless steel self-rimming sink
    • Crown molding on all overhead cabinets
    • Toe-kick heat register in base cabinets (per plan)
    • Corian® finish countertops with 4” backsplash, 2” front drop edge

    Bathroom

    • Designer-selected light fixture above sinks
    • 60” one-piece fiberglass tub / shower
    • Corian® counters with 4” backsplash
    • Beveled-edge mirrored medicine cabinet
    • China self-rimming sinks
    • Satin nickel lighting fixtures
    • Towel bar & paper holder – satin nickel finish
    • Elongated low-flow water-saving toilets
    • Moen® dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish & parts
    • Moen® tub/shower faucet featuring pressure balance valves to help prevent temperature variations, reducing the chance of scalding
    • Ceiling vented exhaust fan
    • Shaw Challenger vinyl floor covering

    Mechanical

    • All vinyl windows & doors sealed on interior and exterior
    • High efficiency 95% UE gas furnace
    • Up to R-33 insulation value in ceilings & R-22 in floors
    • Set-back programmable thermostat
    • Marriage line perimeter gasket seal
    • Caulking seal at plumbing & electrical penetrations – walls and floors
    • Bottom board penetrations sealed
    • Certification and checklist including Energy Star label on the interior of the home
